Dual-Polarity +-12VDC 150mA Supply

Regulated dual-polarity +-12V DC power-supply.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

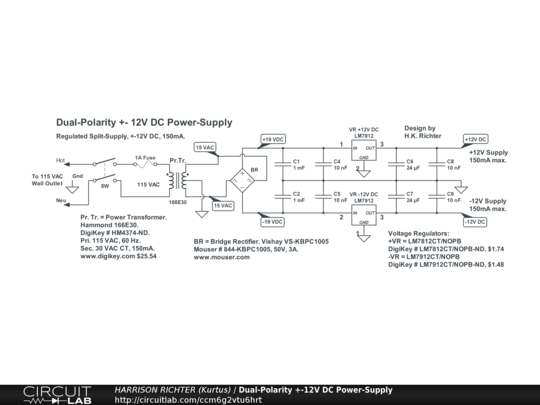

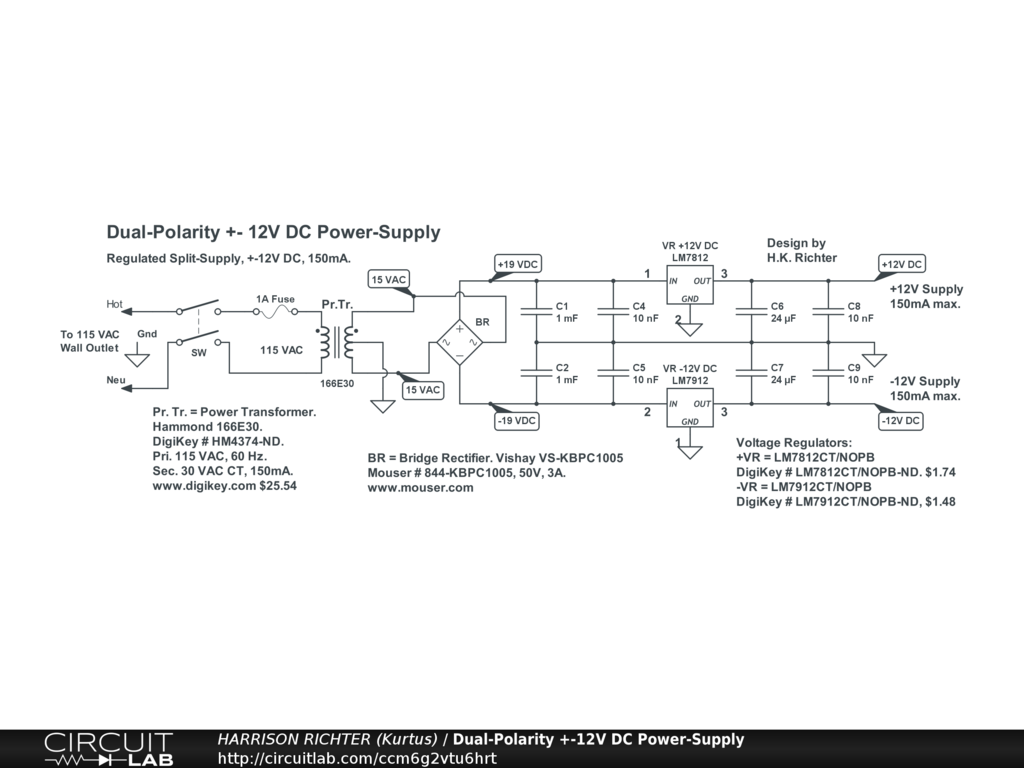

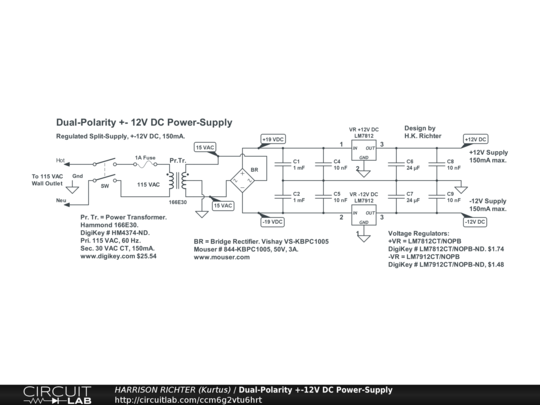

Regulated dual-polarity +-12V DC power-supply. 150mA available current. For preamp circuits using op-amps. Sufficient for supplying up to 15 op-amps.
