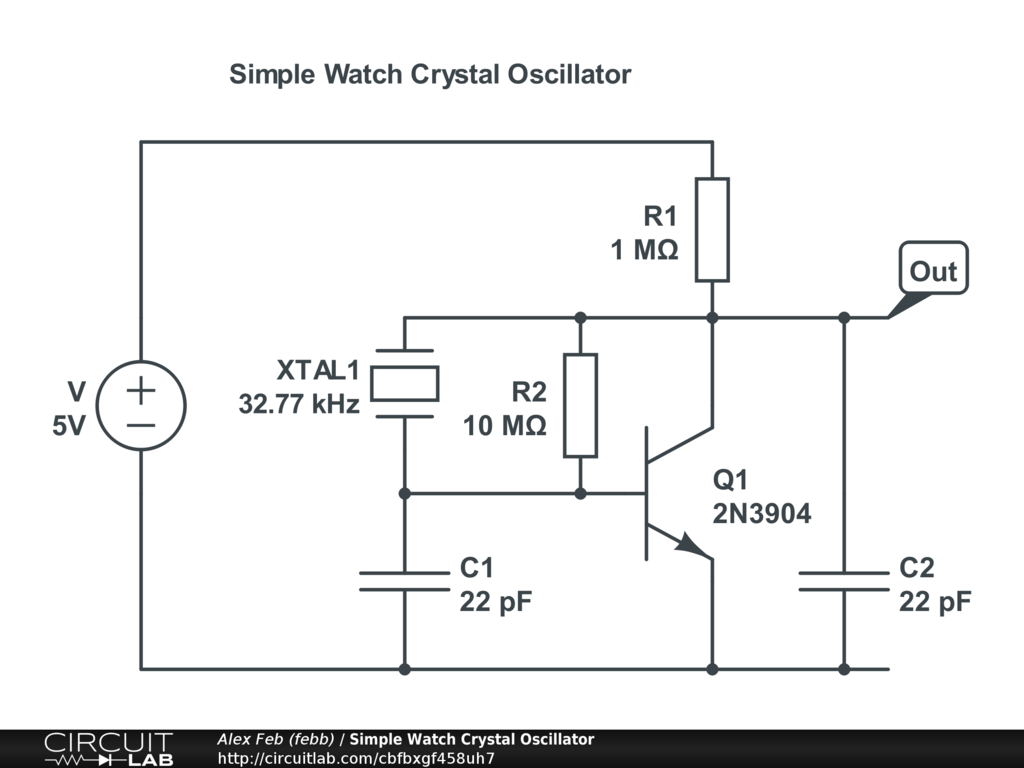

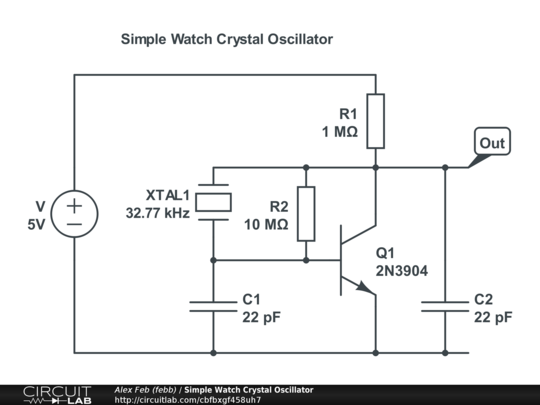

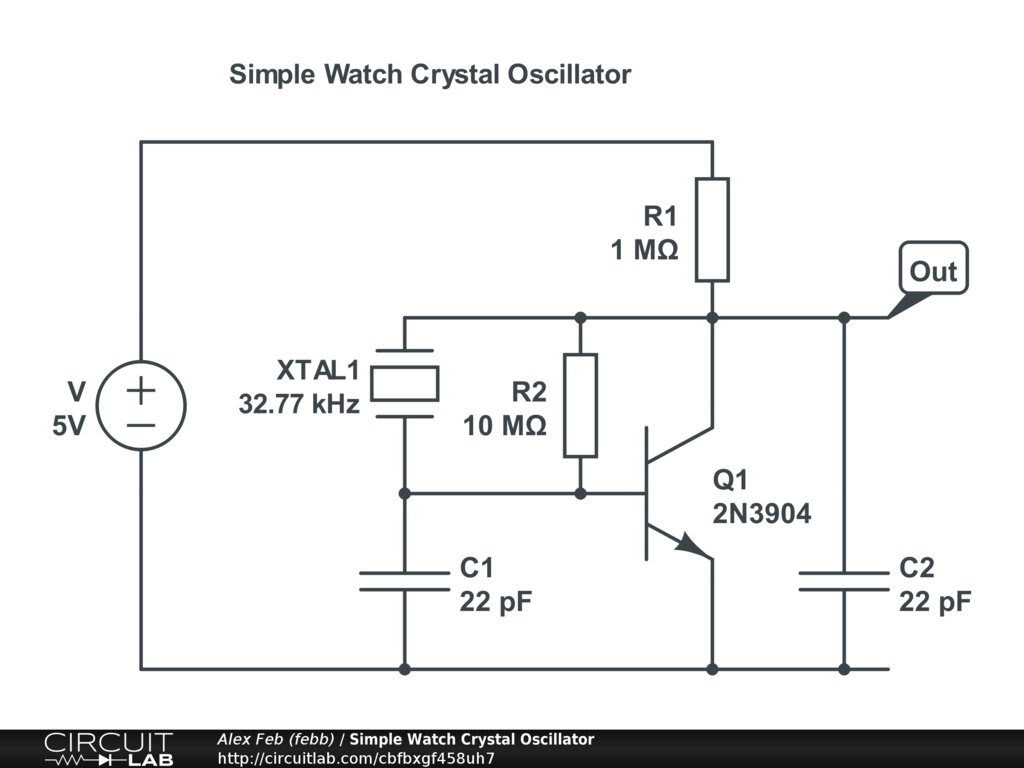

Simple Watch Crystal Oscillator PUBLIC

Created by
Created November 24, 2018
Last modified November 24, 2018
Tags No tags.

Summary

Simplest Watch Crystal Oscillator on 1 transistor

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.
