Simplifed 1 of 4 Exclusive Selector PUBLIC

Created by
Created July 17, 2025
Last modified 2 days, 5 hours ago
Tags 4-channel-controller

Summary

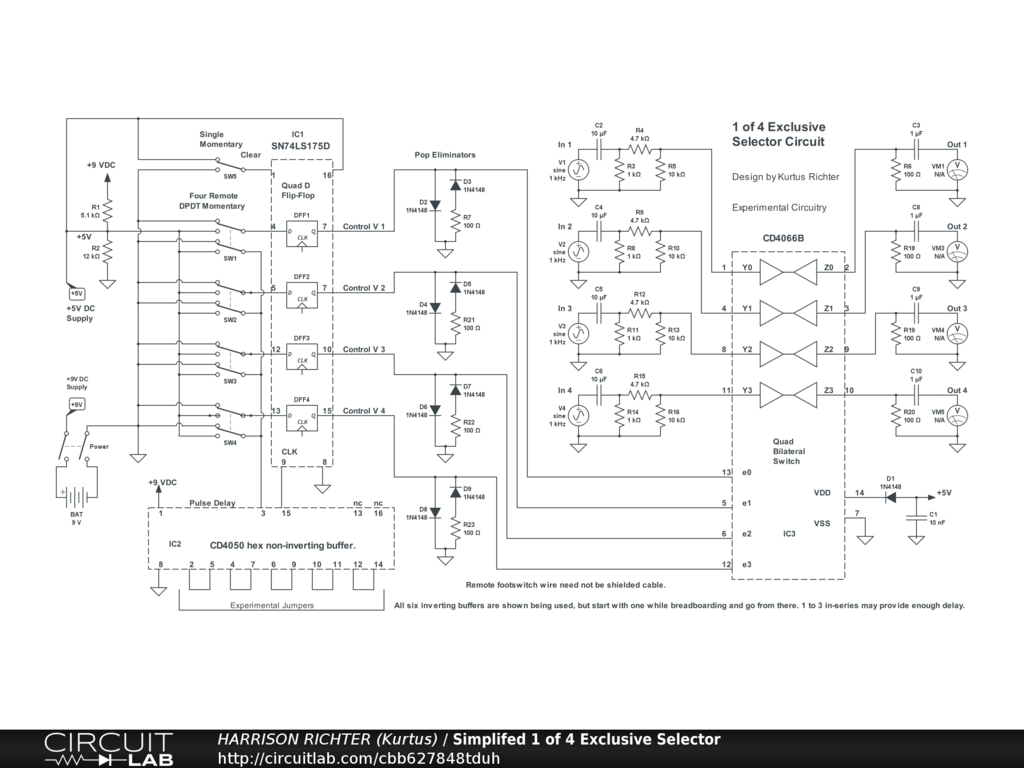

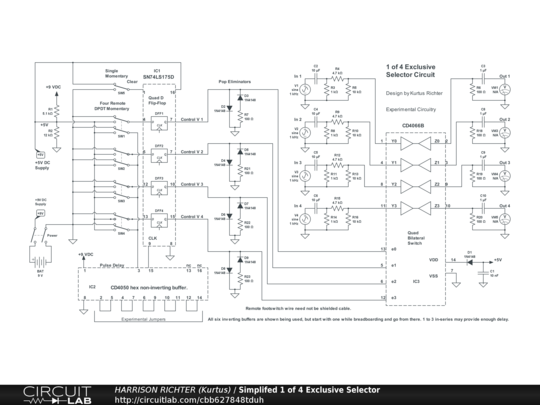

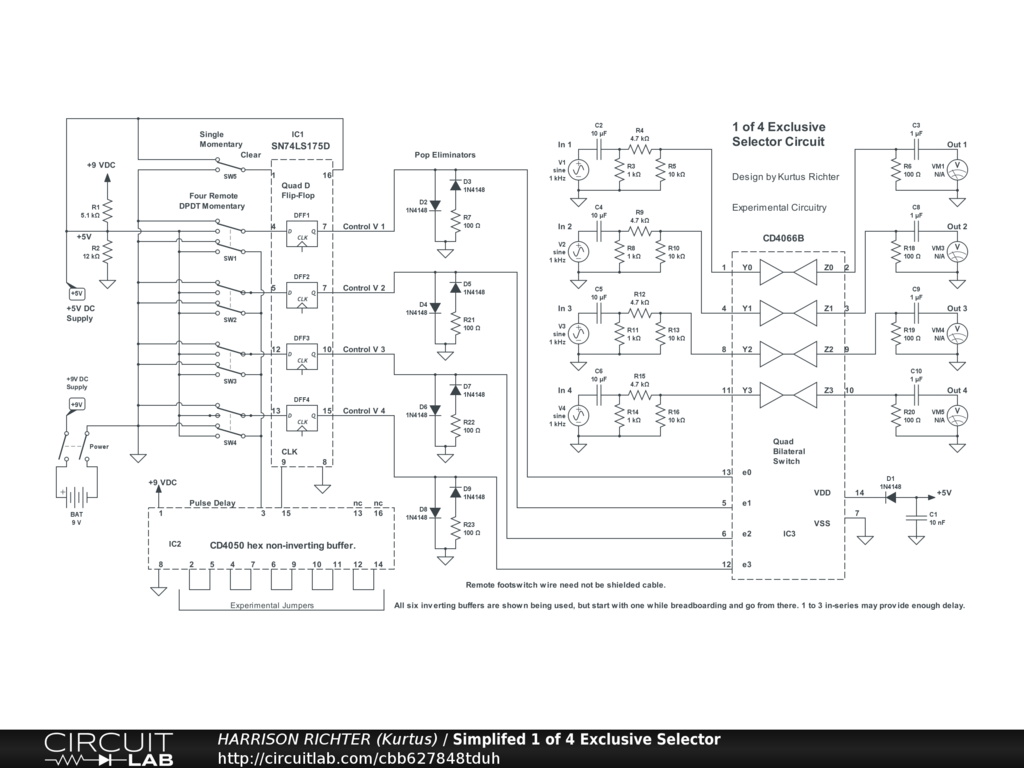

Simplified 1-of-4 Exclusive Selector Circuit

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Simplified 1-of-4 exclusive selector circuit for electric guitar.
