L4- Power supply regulated

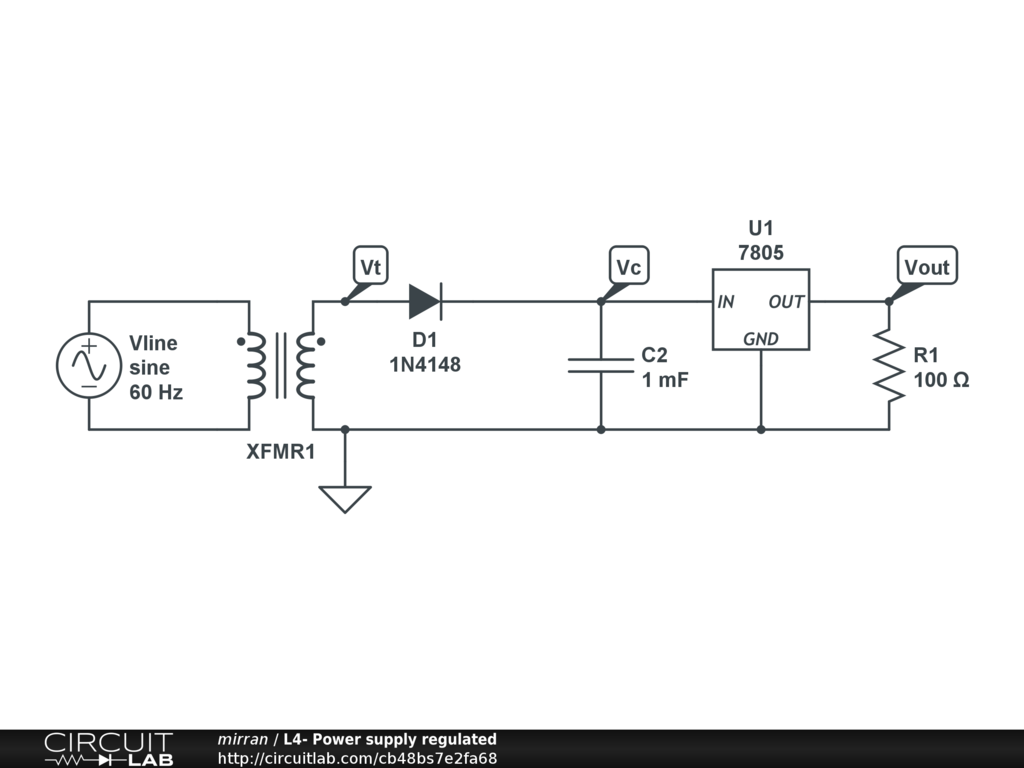

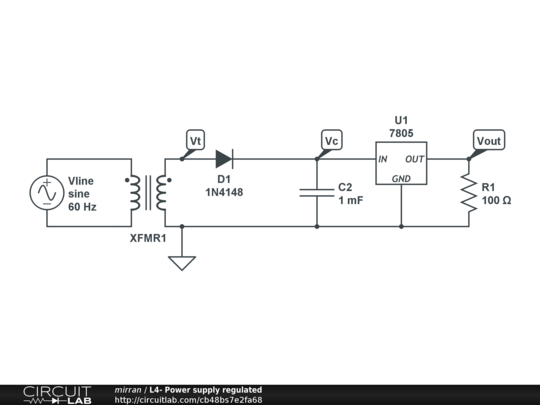

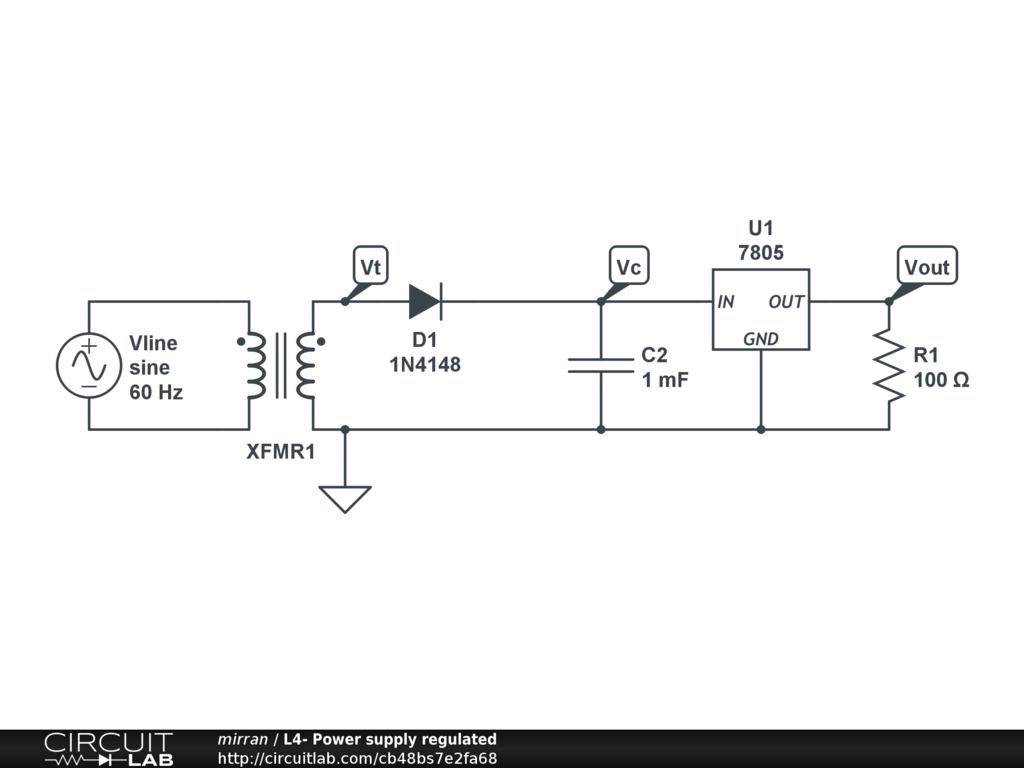

120V A/C to 5V using a regulator - lesson from a course. Cannot get a flat 5V. No idea why.
