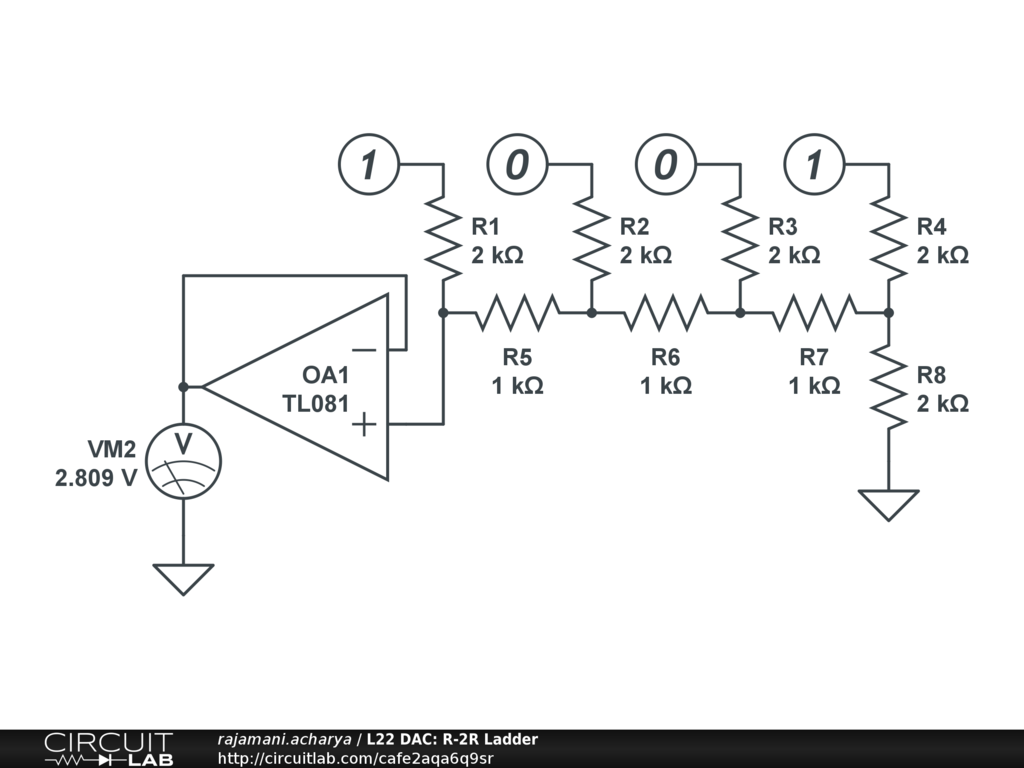

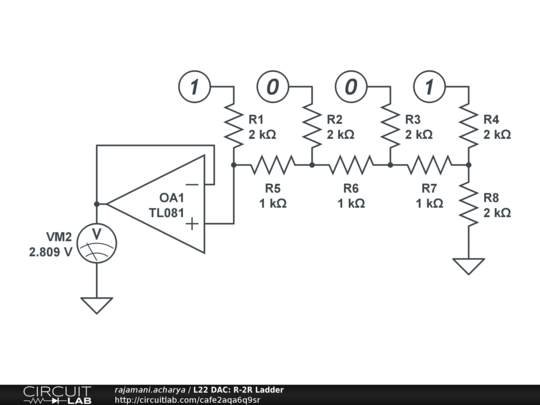

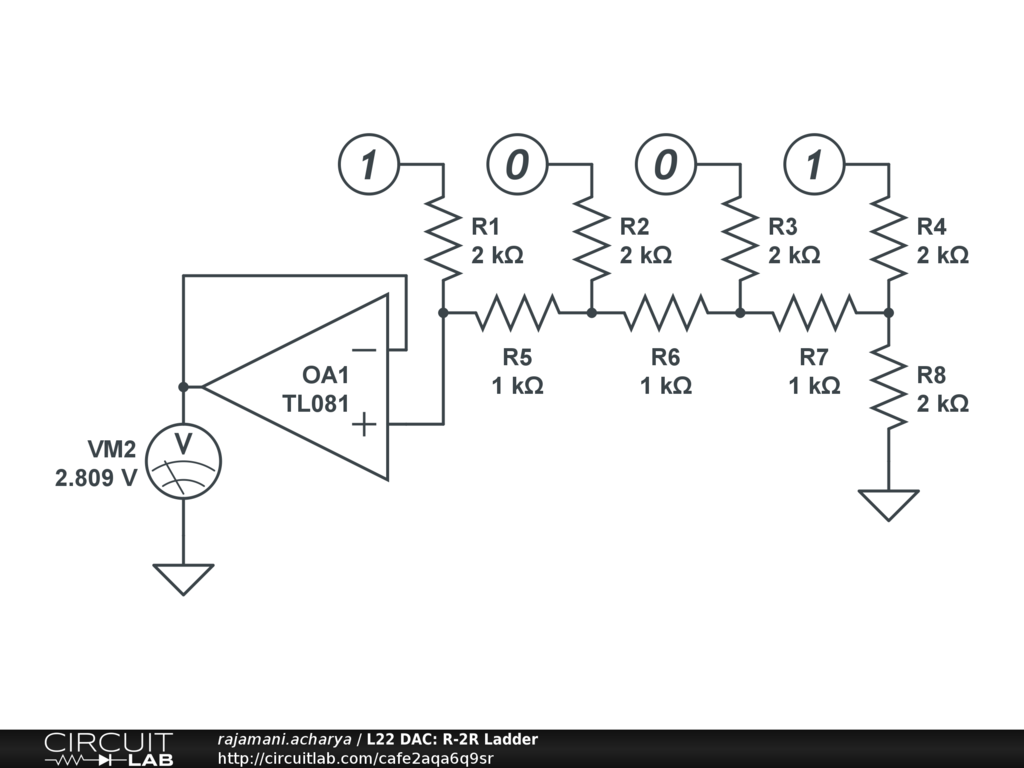

L22 DAC: R-2R Ladder

4-Bit binary input representing N in base 10.
Output voltage = 5(N/16) : N = V(16/5)
