USB power backup supply

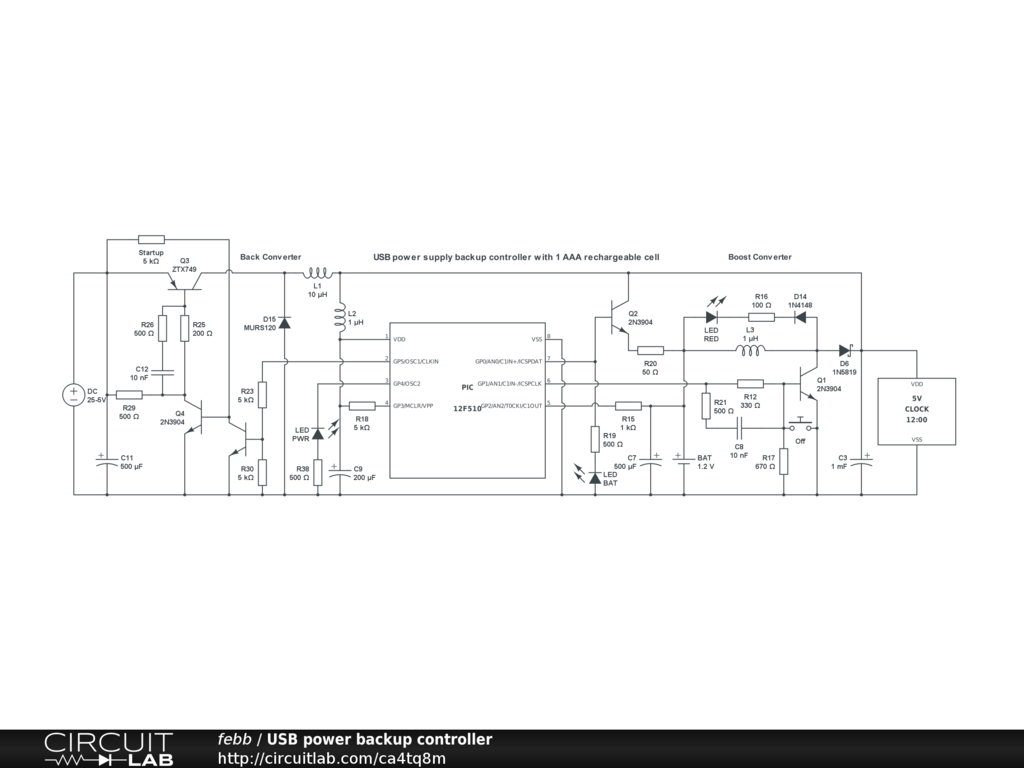

USB switch mode power supply and backup controller with 1 AAA rechargeable battery
