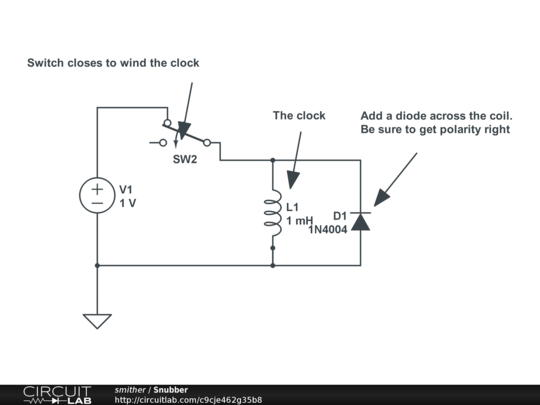

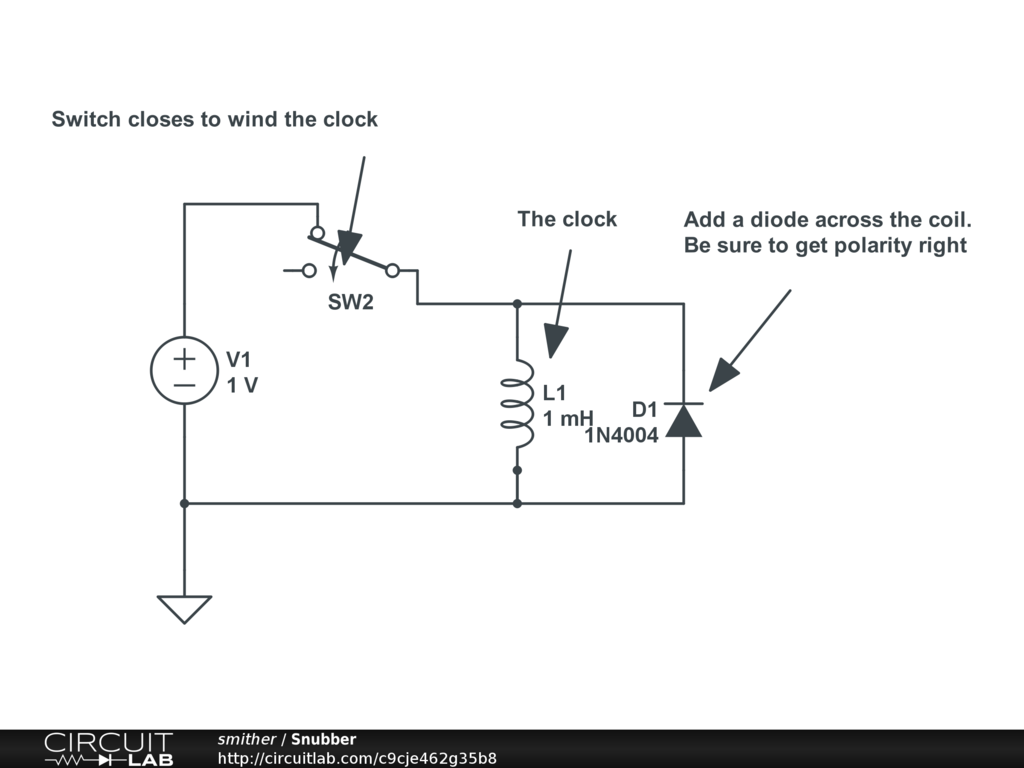

Another approach. You need a value and some resistance in the inductor, and you need to use the timed switch element. I used 1mH and 1 ohm for the inductor. The switch opens at t = 0. Note that the DC solution will have established 1 volt accross and 1 amp through the inductor.. When the switch opens the diode conducts to discharge the energy in the inductor,
