1 of 4 Exlusive Selector Circuit PUBLIC

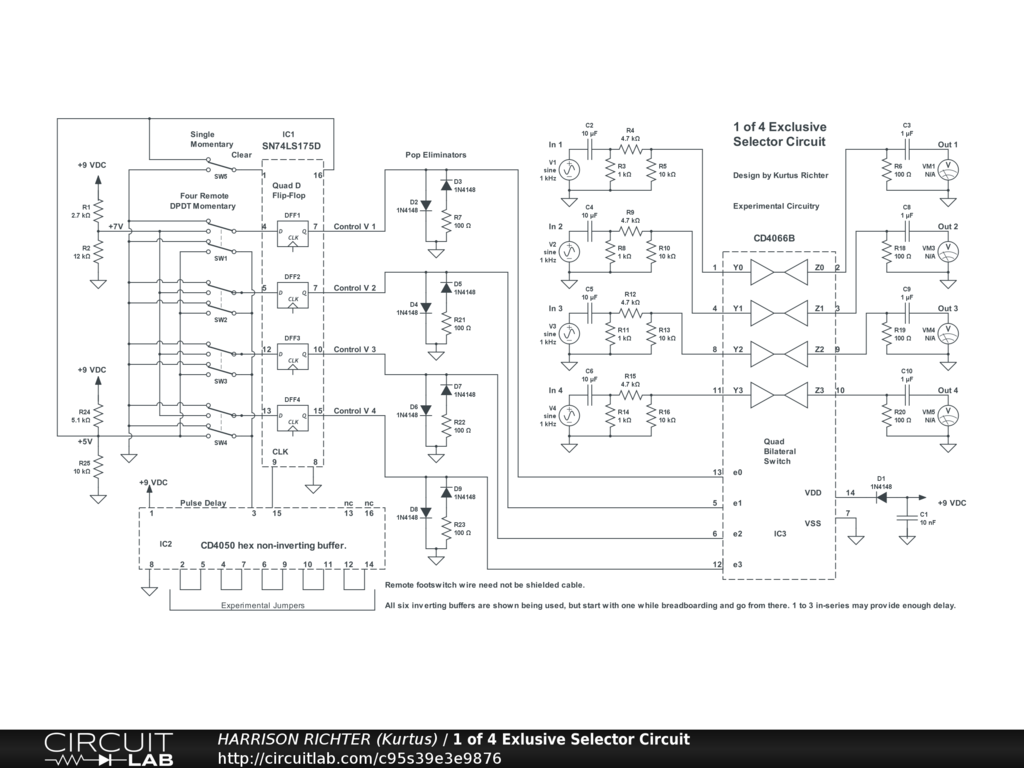

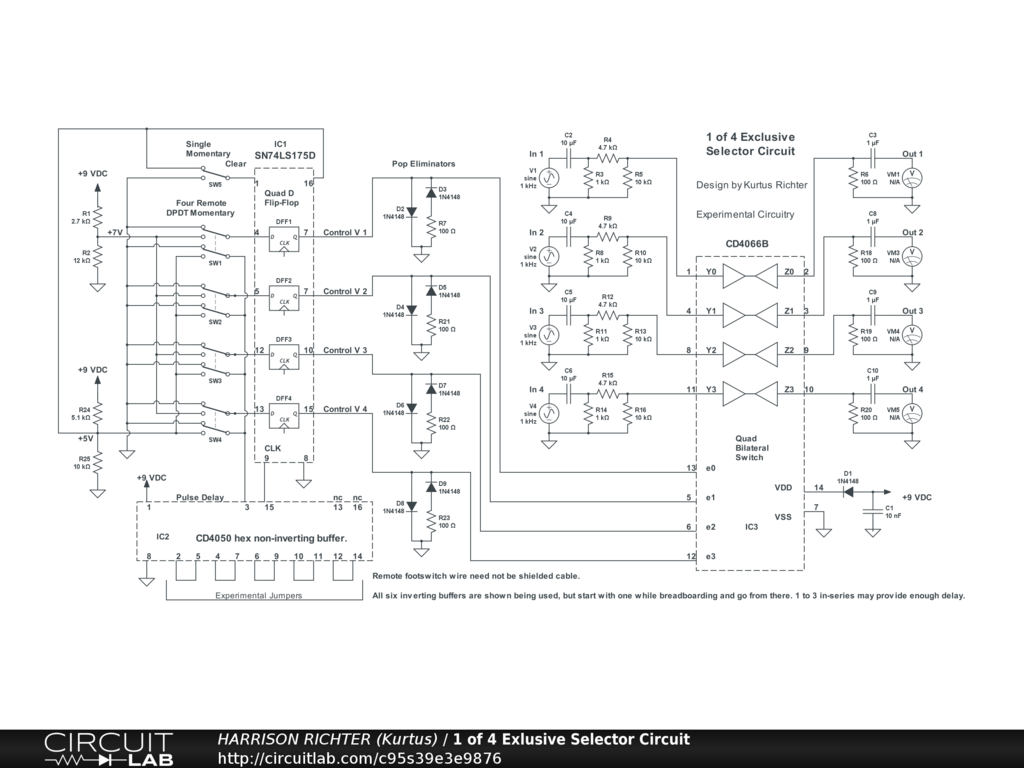

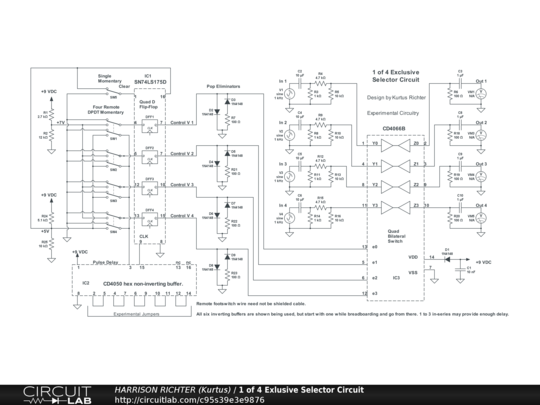

Circuit: 1 of 4 footswitch-activated channel selection for guitar.

Theoretical experimental quiet-switch circuit designed to allow a guitarist to enable one out of four different effects or effect-lines by pressing one out of four footswitches while playing live. A mixer is required (not shown) if the outputs of the four effects or effects-lines are to go to a single amplifier or other active equipment (recording gear, PA system, etc.). For independently-enabled channels, see project labeled "4-Channel Quiet Switch". Possibility: 16-channel quiet-switch circuit involving the 4-Channel Quiet Switch circuit controlling four separate 1 of 4 Exclusive Selector Circuits.
