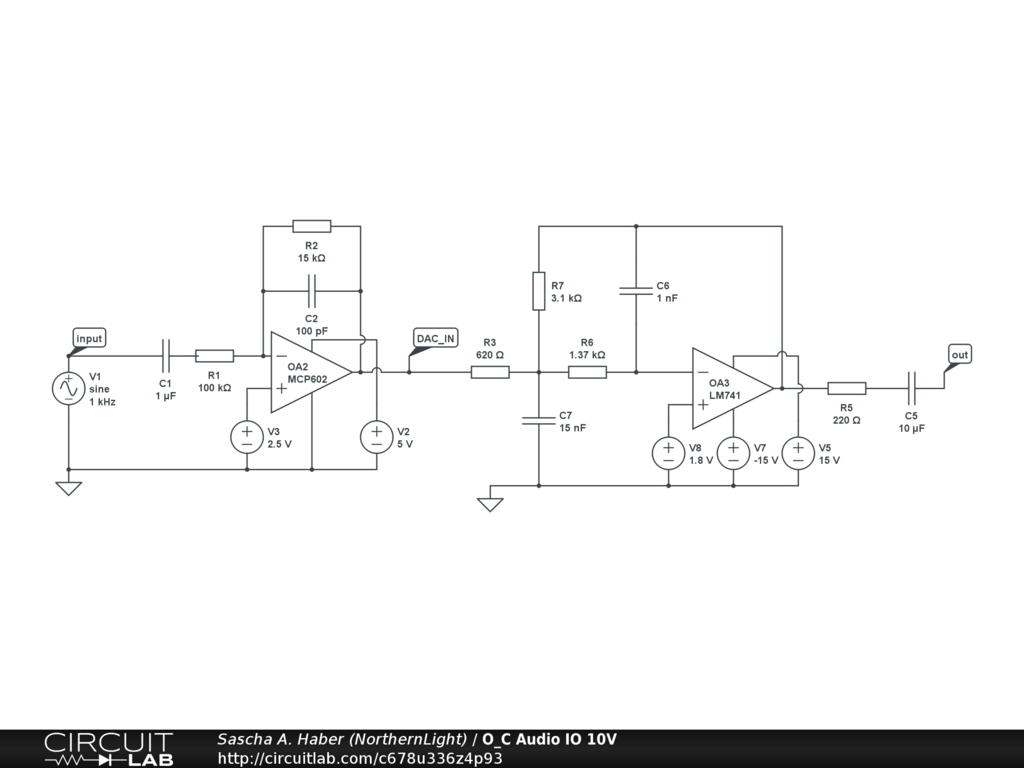

Here's Pauls best initial guess for converting to ±10V signal range for both input and output
R93 R94 = 619 ohms
R95 R96 = 1.37K
R97 R98 = 3.09K
R101 R102 = 15.8K
C42 C43 = 15nF C0G/NP0
no change needed to C44 C45 which are 1nF C0G/NP0
C46 C47 = 100pF C0G/NP0
