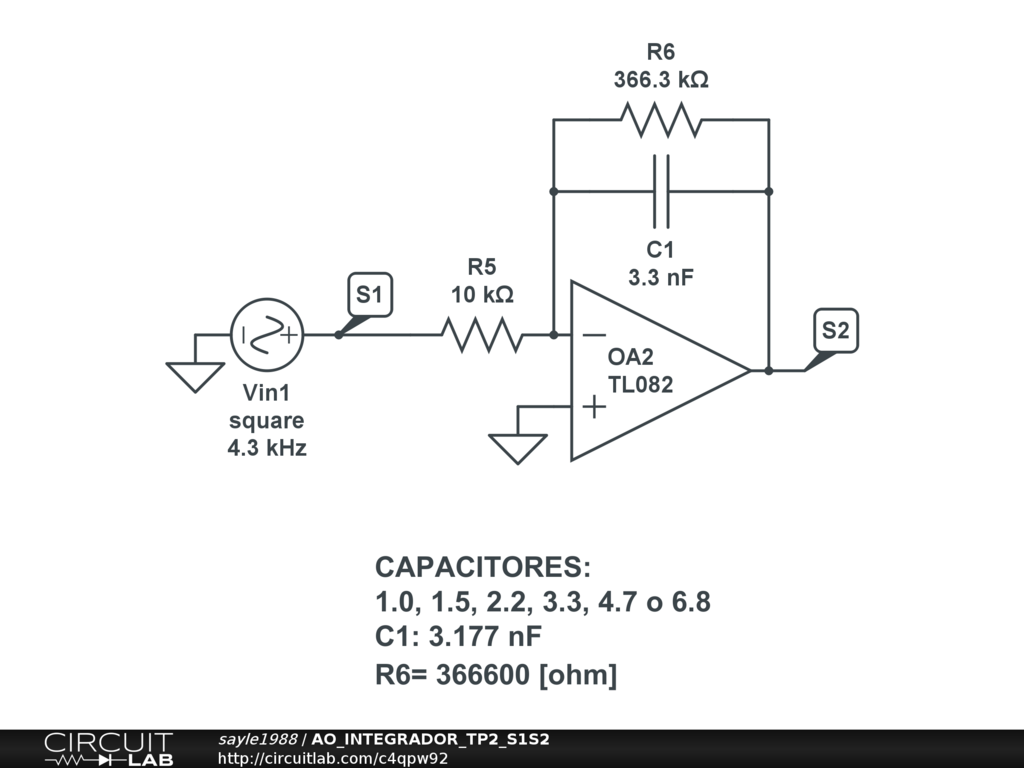

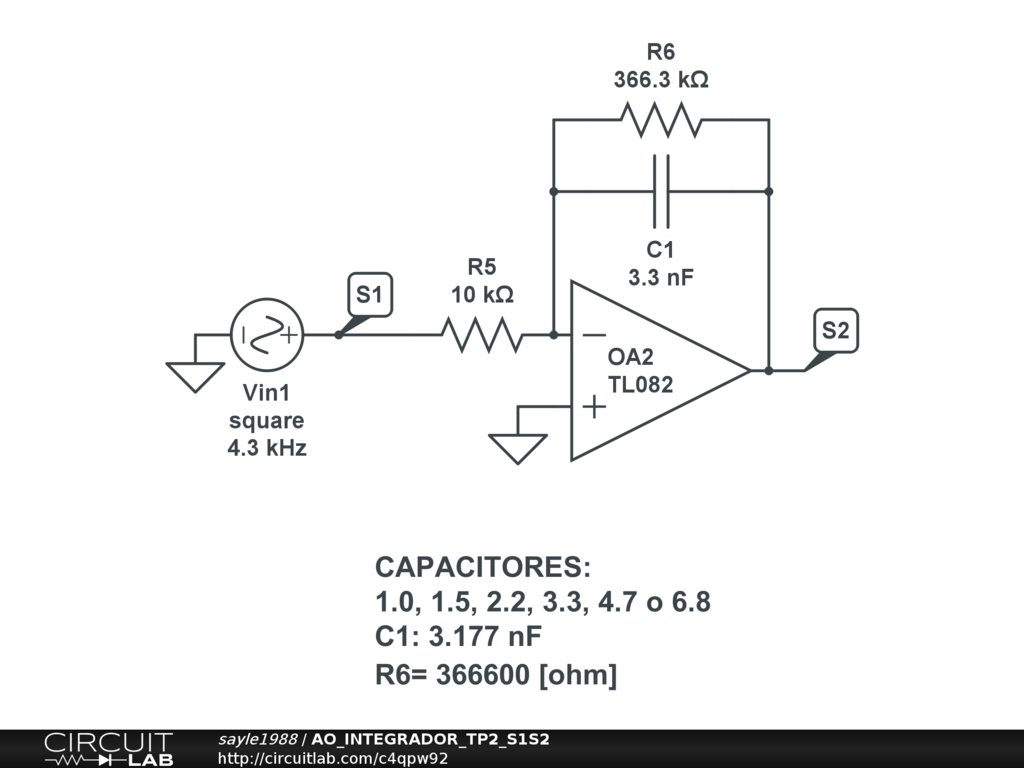

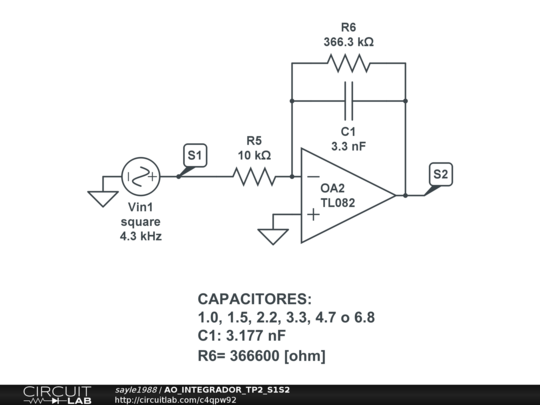

INTEGRADOR DE SEÑAL CUADRADA: Vip(+)=1.5,, Vip(-)=-1V, F=4.3KHz, , AV(4300Hz)=Vop-p/Vip, AV(430Hz)=R2/R1,

Finferior=Fintegrar/10, AV(430Hz)=AV(4300Hz)*(Fint/Finf.),

R2=AV(430Hz)R1=3.6610KOhm=366.6KOhm

Equacion de entrada: Vopp=(Vip/R1C1)*(int)dt, INTEGRAMOS EN MEDIO PERIODO CORRESPONDIENTE A UN CICLO POSITIVO DE LA ONDA CUADRADA.

C1=t /(R1AV(4300Hz))=(1/8600)/(10KOhm3.66)=3.177uF
