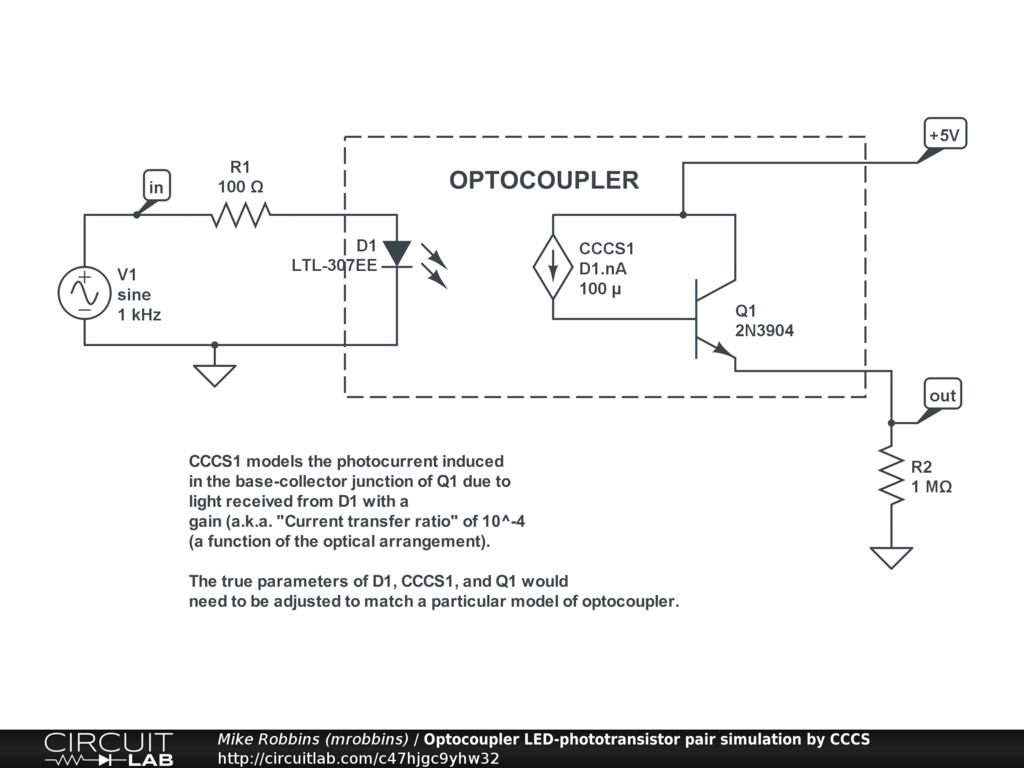

Optocoupler LED-phototransistor pair simulation by CCCS

Optocoupler LED + NPN phototransistor simulated using a CCCS controlled source.
