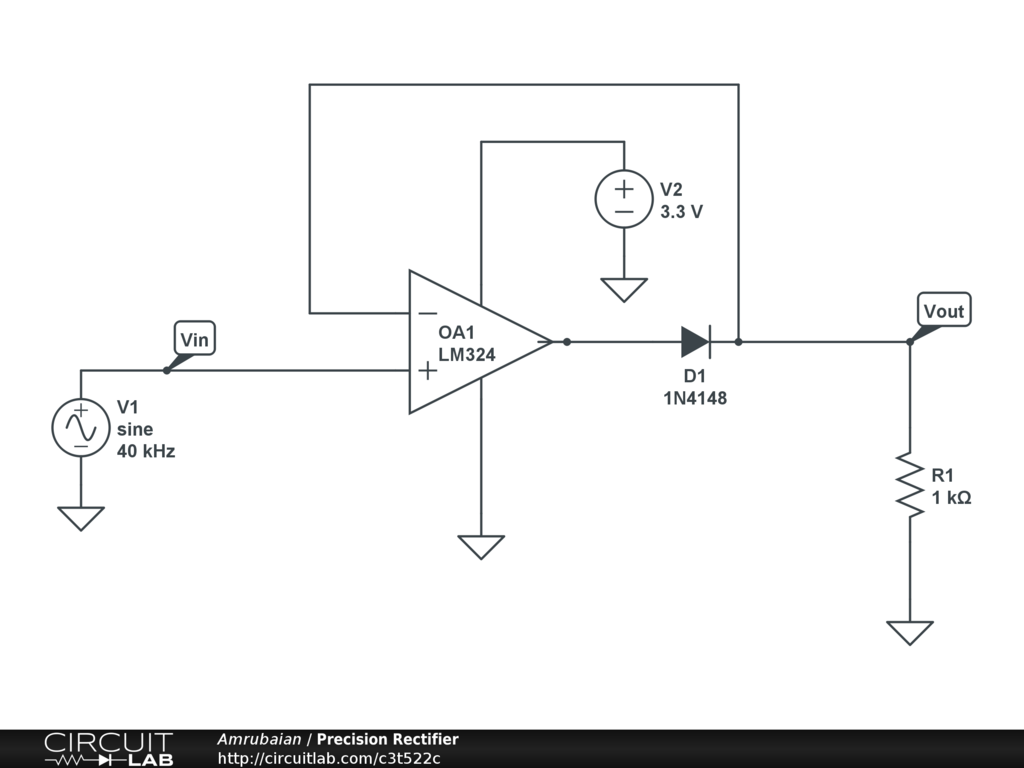

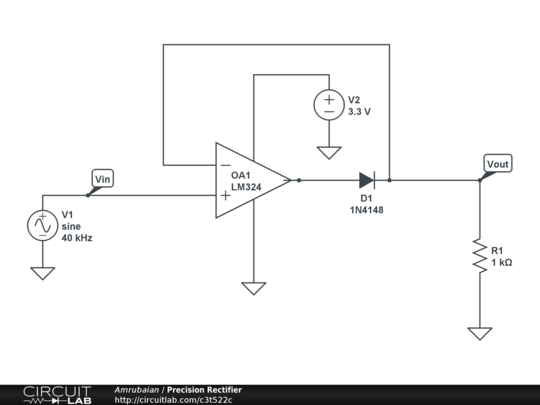

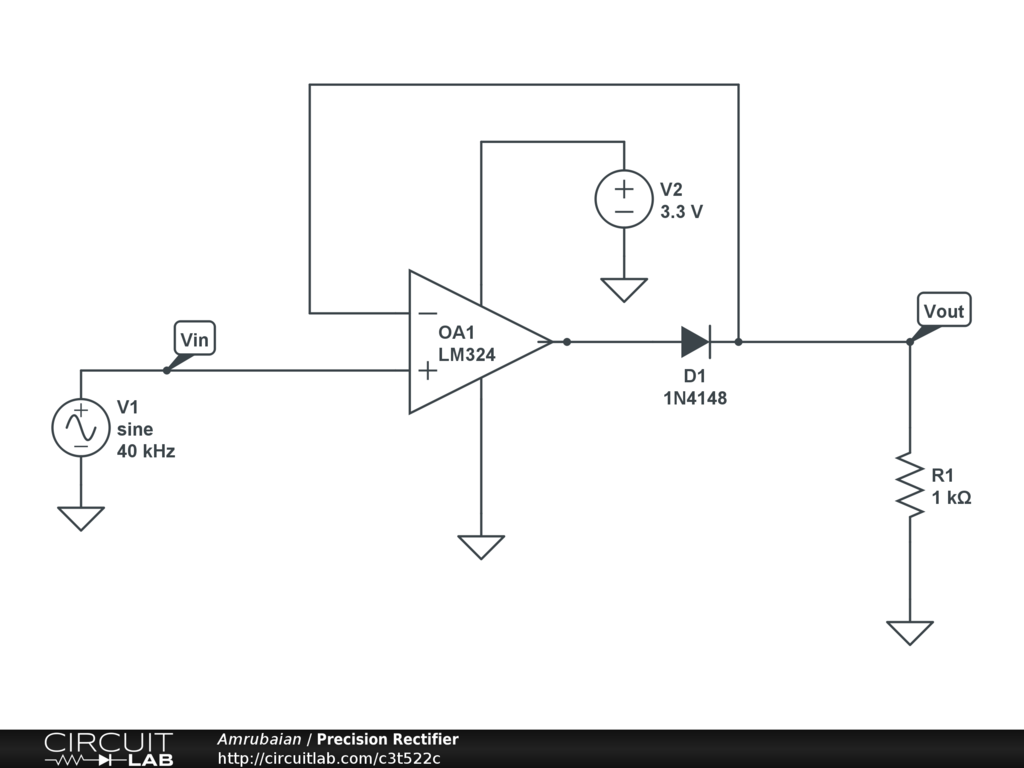

This is a fast schematic simulating the behavior of a precision rectifier with the respect of input voltage/frequency.
By increasing the frequency it is notable that the rectification is dulled whilst reducing the voltage has little or no effect on the output.
