CdS night switch simulation

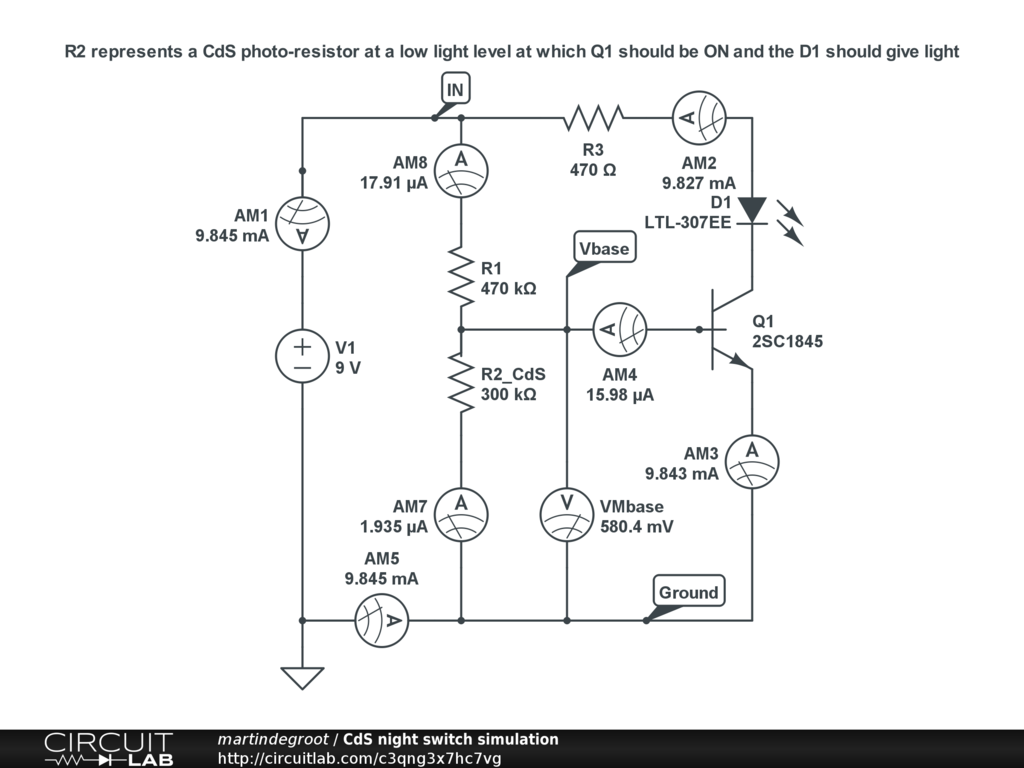

Simulation where R2 represents a CdS photo-resistor at a low light level, where the transistor should be ON and the LED should light clearly visible.
