Current Sense (Imax=4A)

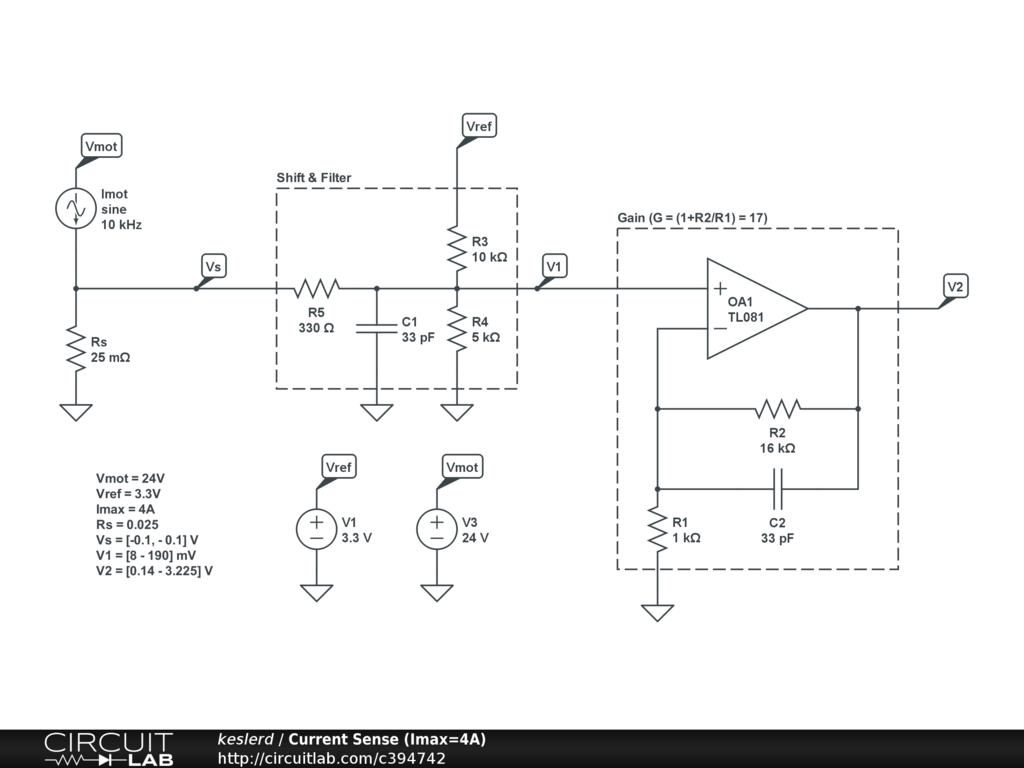

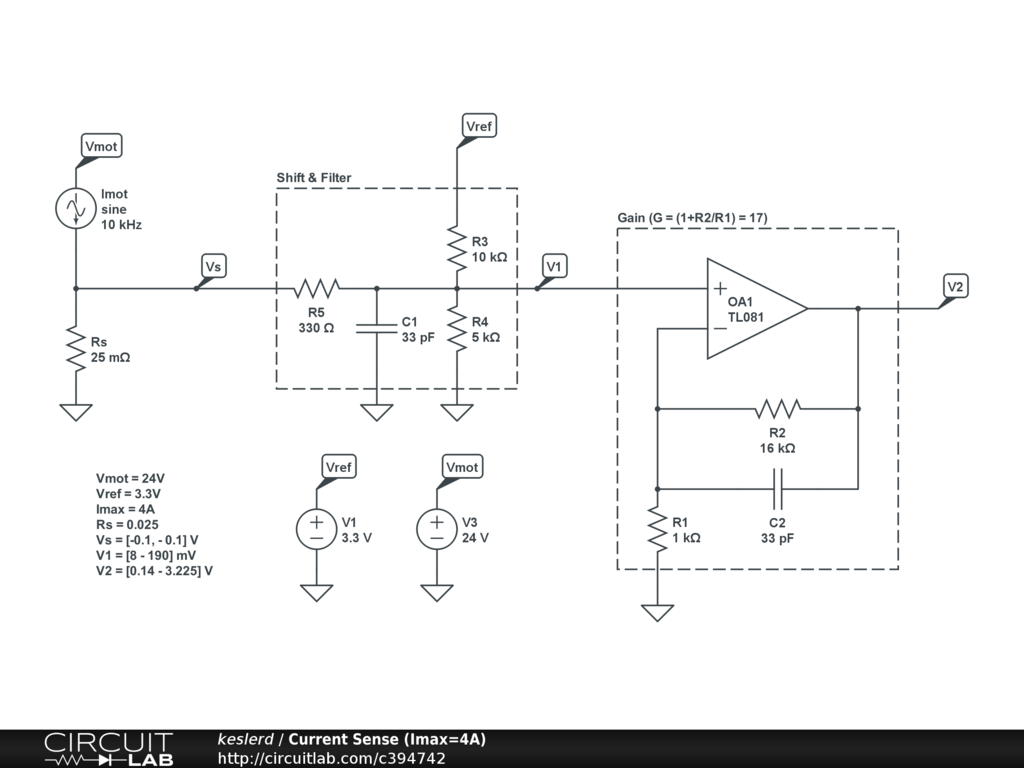

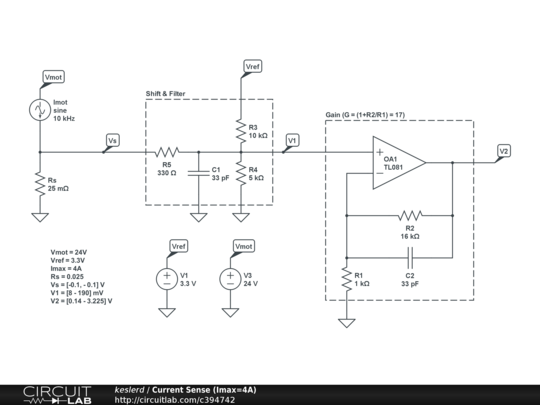

Shift and Gain circuit for current sensing with shunt resistor. Useful for measuring motor coil currents.
