Textbook Example Op-Amp Circuits 2: Non-Inverting Buffers.

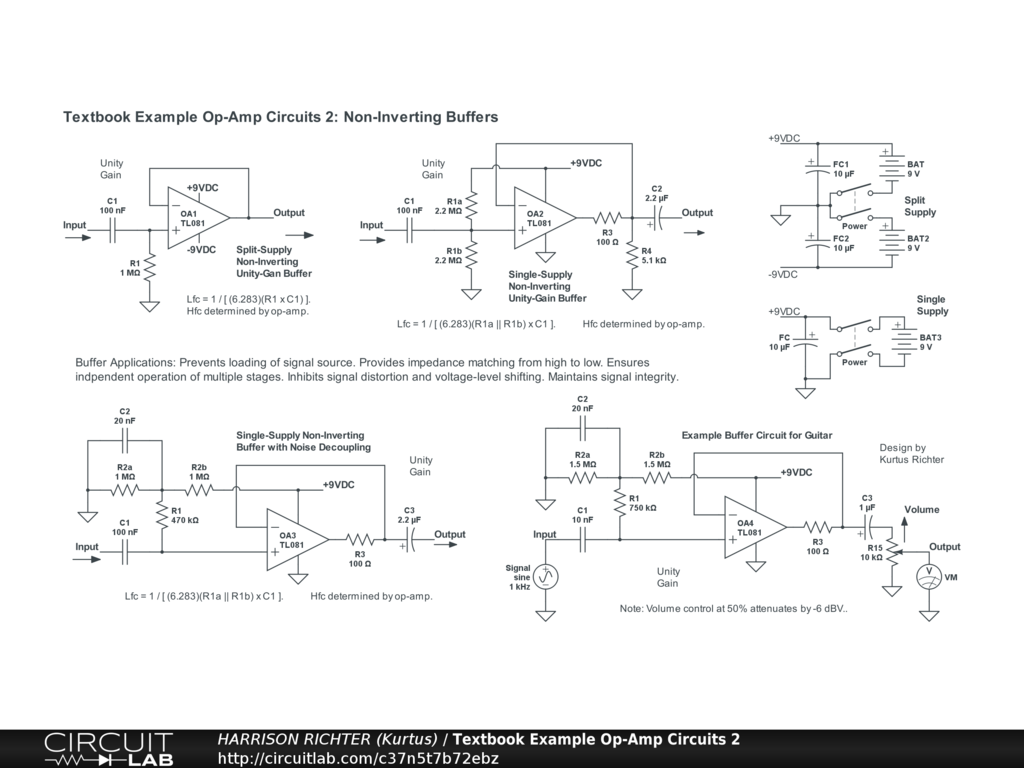

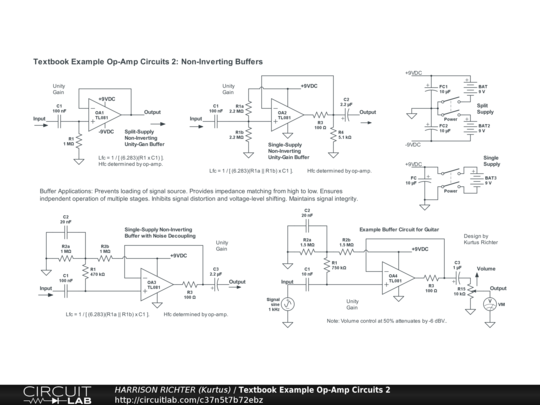

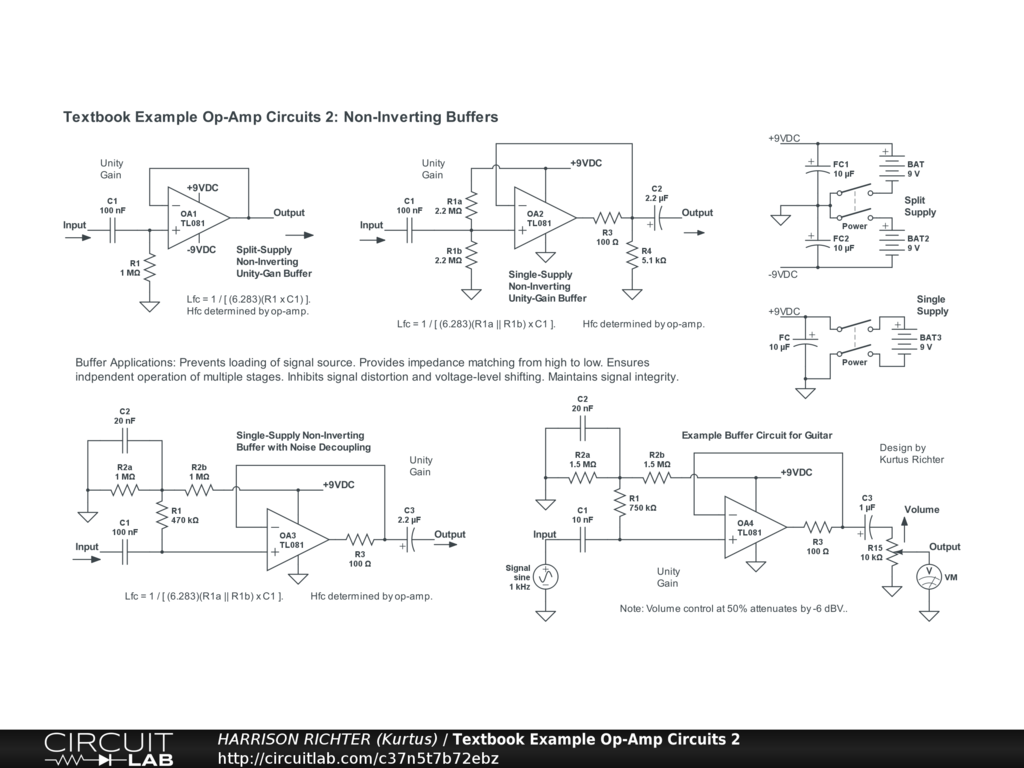

Textbook examples of op-amp circuits, Part 2, featuring one split-supply circuit, two single-supply circuits, and one experimental circuit for guitar. Application information included in diagram. Battery power shown, but batteries can be replaced by regulated dual-polarity or single-polarity supplies, if preferred.
