Not provided.

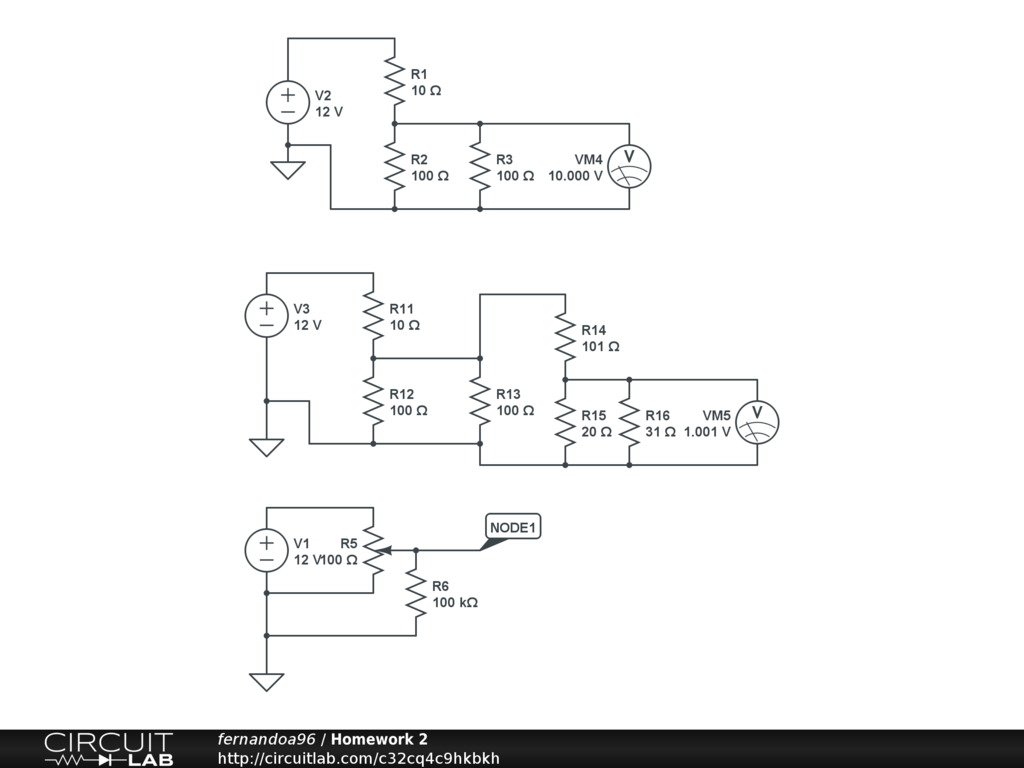

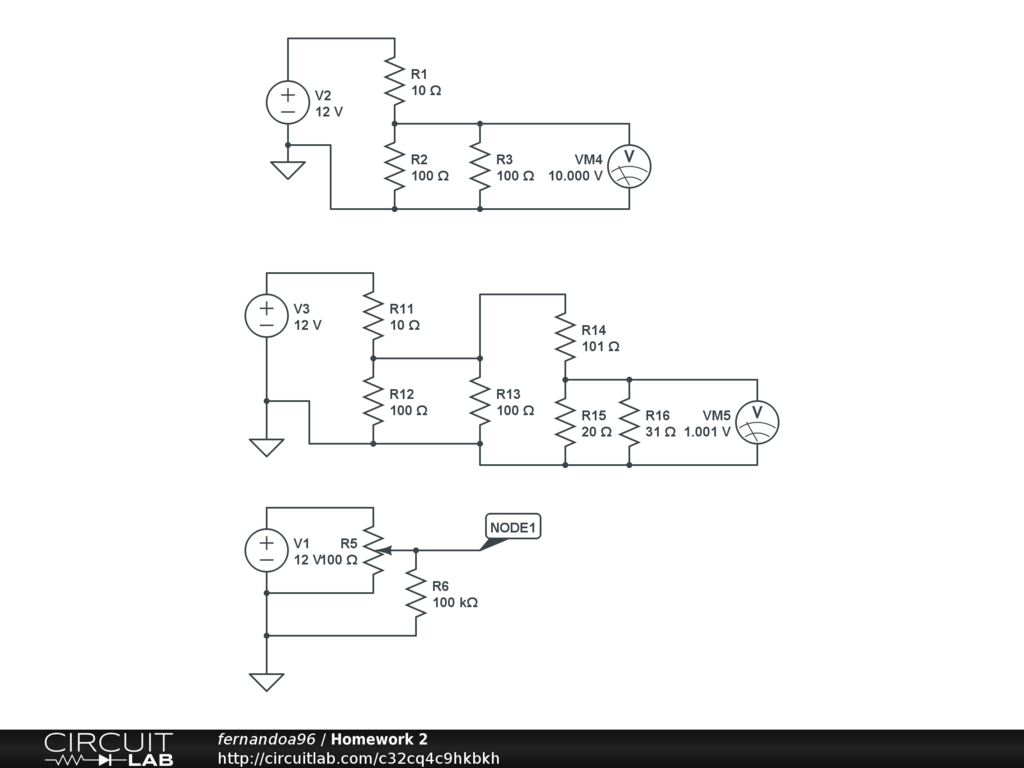

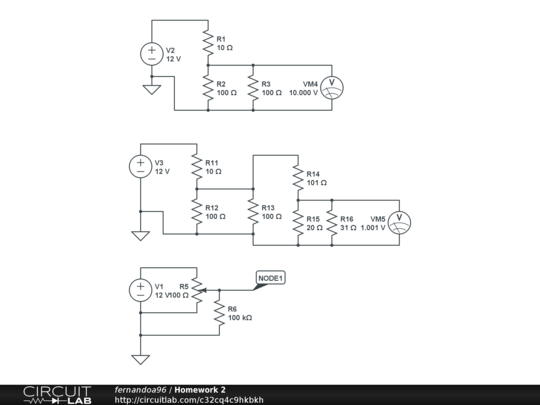

Part 1: R3 has 10 volts running through.
Part 2: R4 has 101 ohms, R5 has 20 ohms. and R6 has 31 ohms.
Part 3: Output Voltage of K= 0.1:1.101, 0.5: 4.8, and 1.0: 12. The voltage is not a straight line due the resistance in the load resistance. After adjusting the load resistance to 100k ohms, the voltage output was more or less a straight line. The non-linear voltage would not be preferred as input since the voltage is already varying with a certain K. Too much confusion and inconsistency would occur between measurements.
