Drawdio PUBLIC

Created by
Created February 14, 2013
Last modified February 14, 2013
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

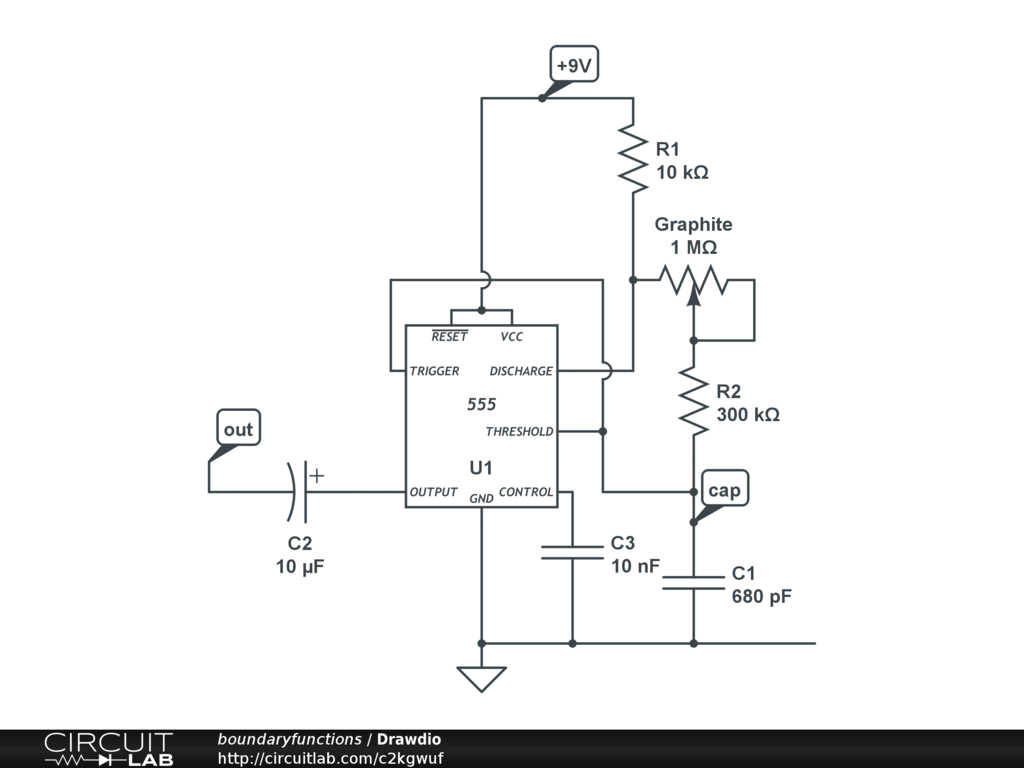

The Drawdio is a simpe 555 based Oscillator which tone can be controlled by some external resistor. This is the Original Circuit.

http://web.media.mit.edu/~silver/drawdio/
