Lab 2 PUBLIC

Created by
Created February 18, 2013
Last modified February 18, 2013
Tags No tags.

Summary

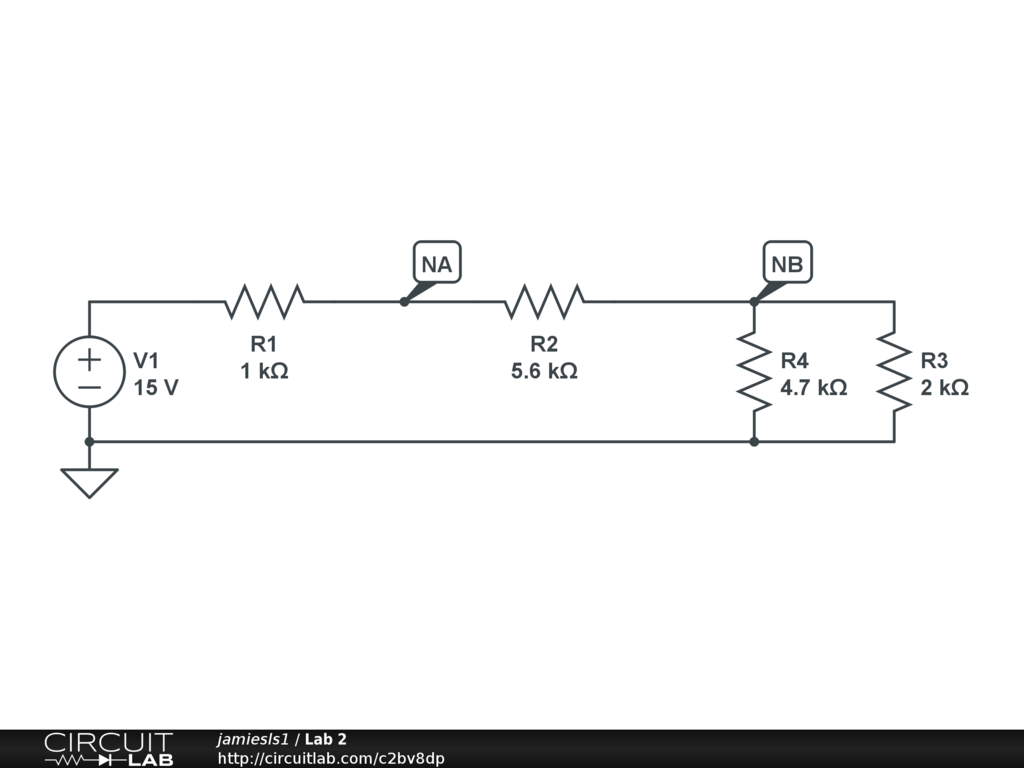

Voltage at NA is 13.13v and NB is 2.63v. These are values close to the calculated and fairly close to measured values.
