Design Project #1 (Electronics 2) PUBLIC

Created by
Created March 10, 2017
Last modified March 16, 2017
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.

Comments

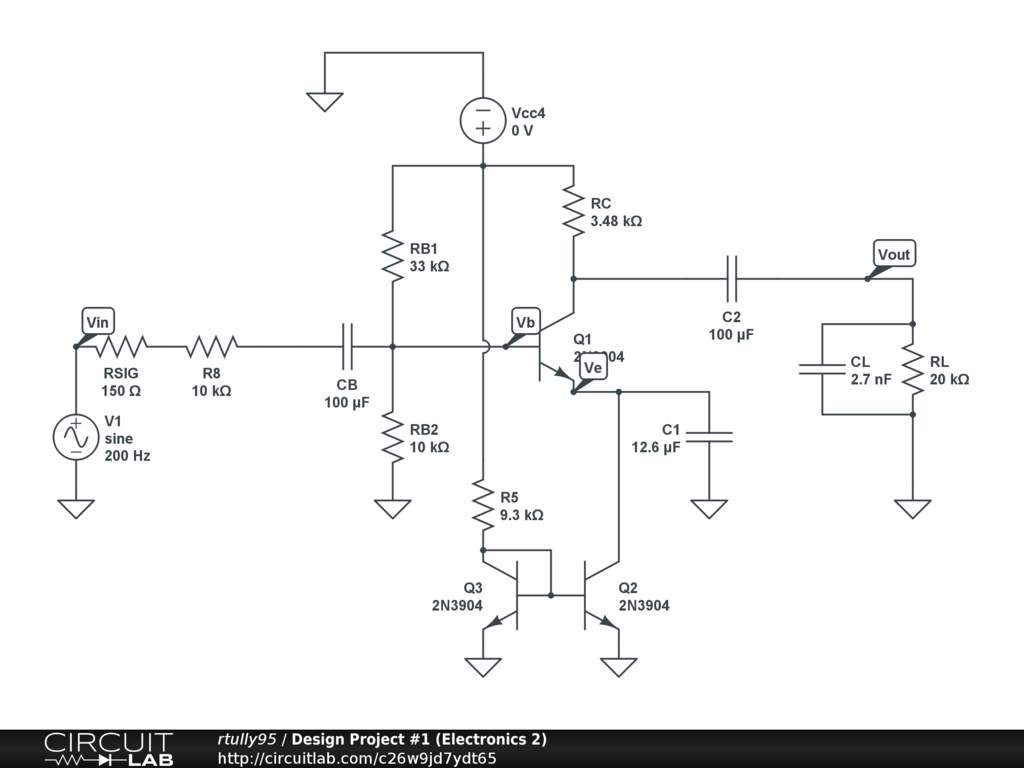

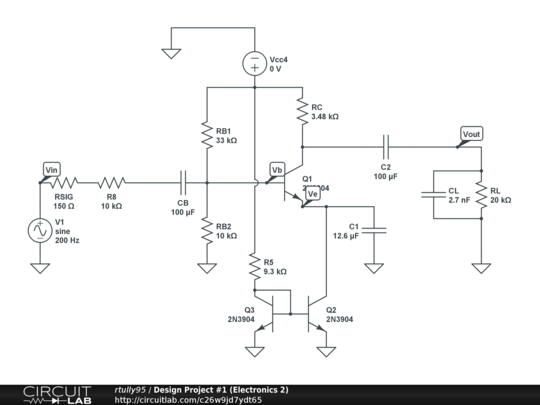

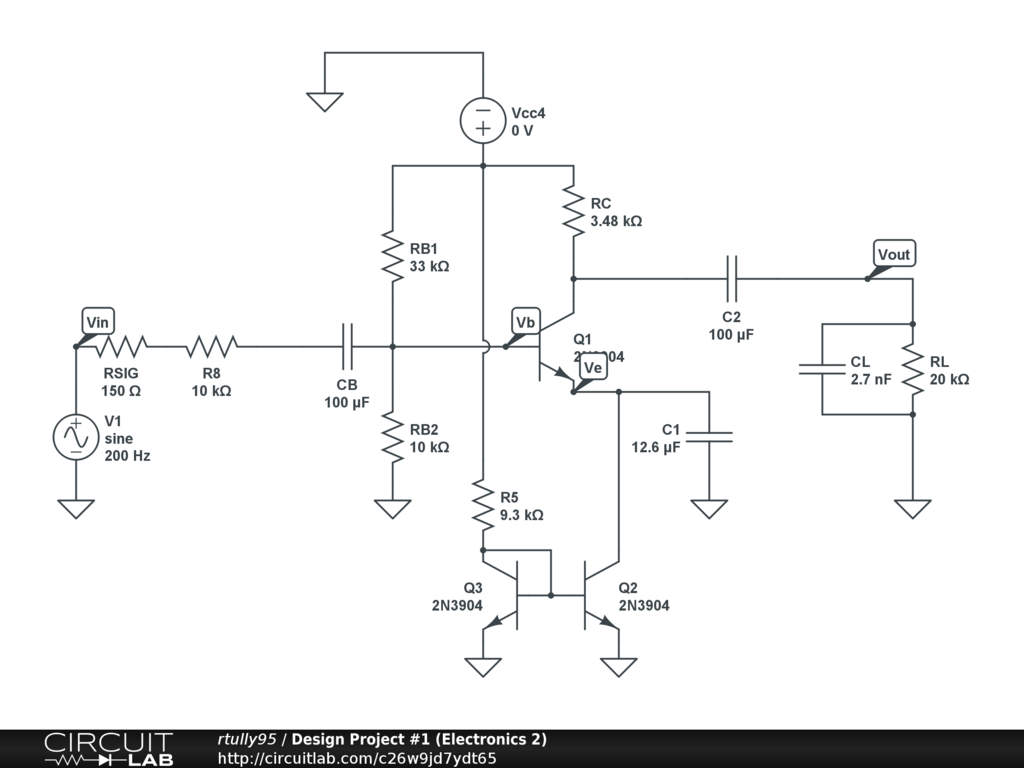

Some questions to get you thinking. To what extent is this circuit dependent on transistor characteristics? Are there any ways that this dependence can be reduced? Can you adjust all the components to preferred values? How might you improve the current mirror? How can this circuit be used as an ac multiplier? Enjoy! mike
