Based on http://www.guitarnuts.com/wiring/jeffcitespredator.php, this setup redefines the switching system to something I like better.

The switches bound to the pickups are for "polarity", and also provide an "off" option.


Description

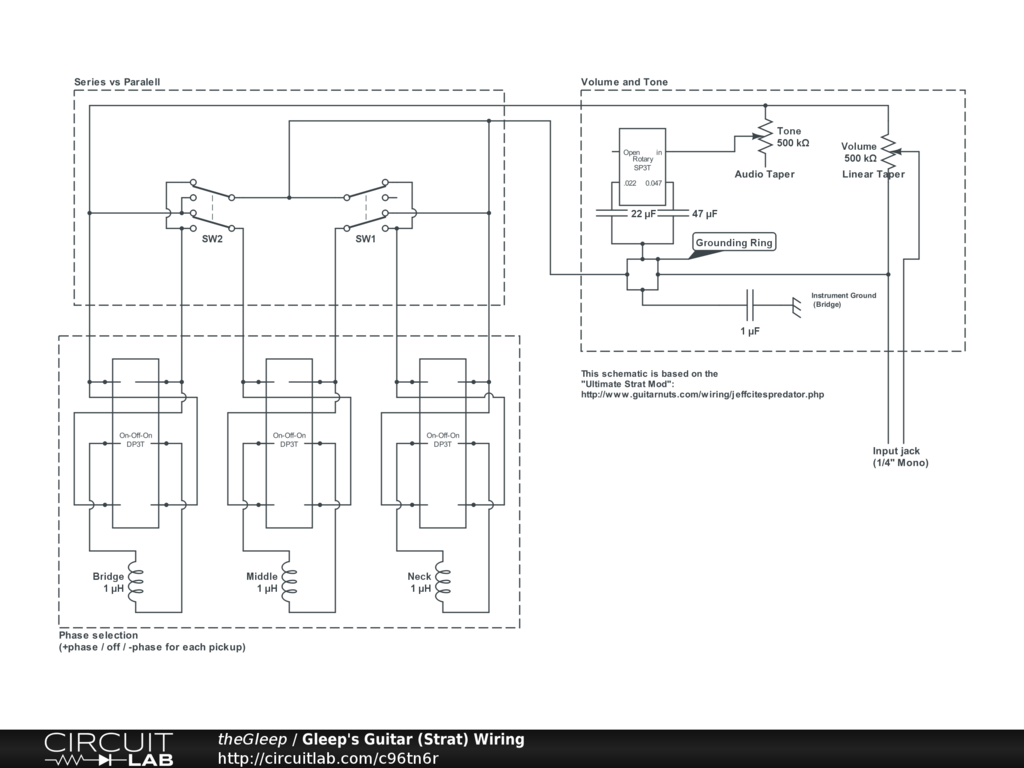

A variation of an "ultimate strat mod" I found somewhere online. Wiring up my strat with this circuit should provide: On/off selection for each pickup in phase/out of phase selection for each pickup (technically, it's "pick which lead is positive/negative for each pickup; if one pickup has a different selection than the other two, that pickup is "out of phase") * series/paralell selection for the pickups: + three paralell + one serial into two paralell + two paralell into one serial + three serial

Someone please double-check these for me? :)
