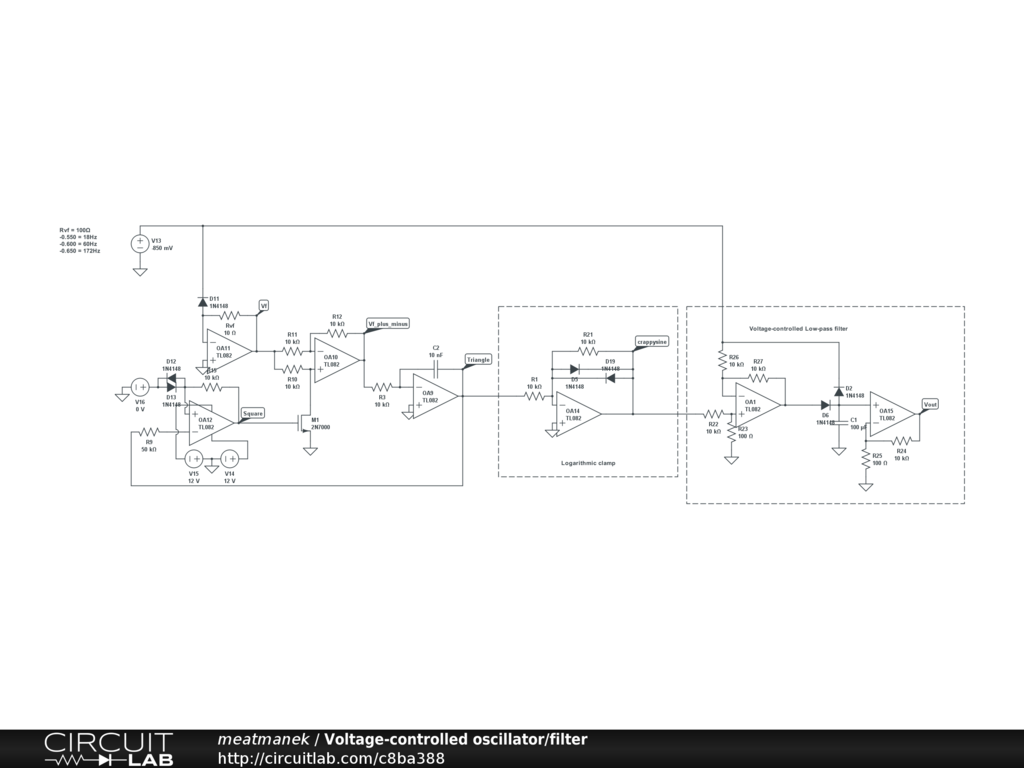

Voltage-controlled oscillator/filter

Uses the diodes' varying impedance depending on current to adjust the cutoff frequency.
