"Twin-T" Oscillator PUBLIC

Created by
Created November 24, 2012
Last modified November 24, 2012
Tags oscillator   twin-t

Summary

Simple - without Gain Control

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

http://www.ecelab.com/circuit-sine-wave-gen.htm

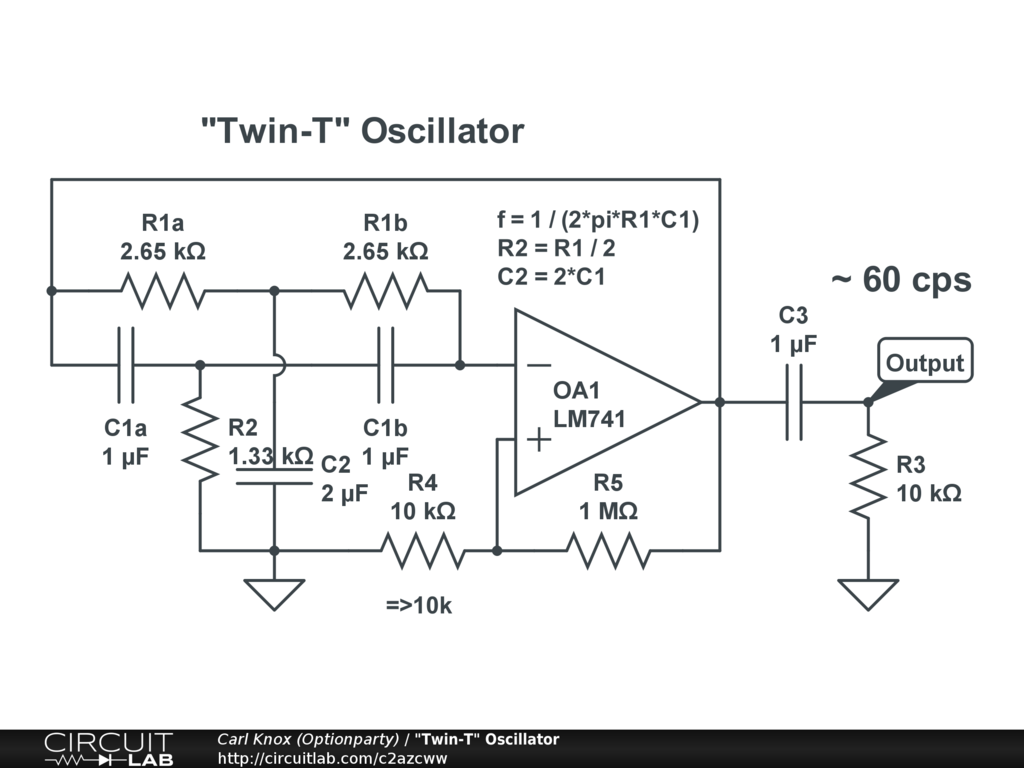

All but the resonant frequency is fed back onto the Inverting input.
